Integration of the PNG Viewer (xSuite Web)
The PNG Viewer is now also available in xSuite Web. The PNG Viewer offers extensive display functions and supports the display of EML files.
Notice
The integration of the PNG Viewer in xSuite Web is currently in beta status.
 |

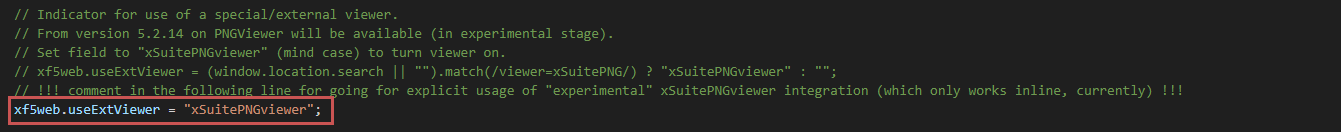

The PNG Viewer can be activated in the file /sap/bc/bsp/wmd/ui5_365/settings.js via the parameter xf5web.useExtViewer. The PNG Viewer is activated if the parameter is set to the value xSuitePNGviewer.
Caution
Note that these parameters are case-sensitive.
 |
Notice
Alternatively, you can append the web URL parameter viewer=xSuitePNG to the index.html request to activate the PNG Viewer.
Currently, the PNG Viewer is only available in xSuite Web for displaying documents in the same window. The display of a document in a new window is handled by the browser's internal rendering functions.
Notice

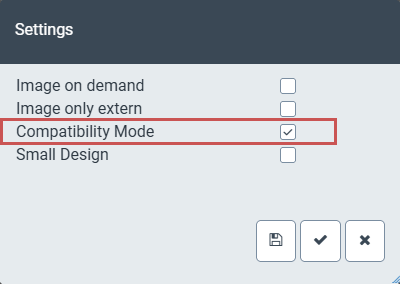

We recommend enabling compatibility mode in the settings when using the PNG Viewer. Enabling compatibility mode speeds up the loading of documents in the PNG Viewer, for example.
 |
