xSuite Helix - Help

UI elements in the "System Events" screen


Section

Description

1

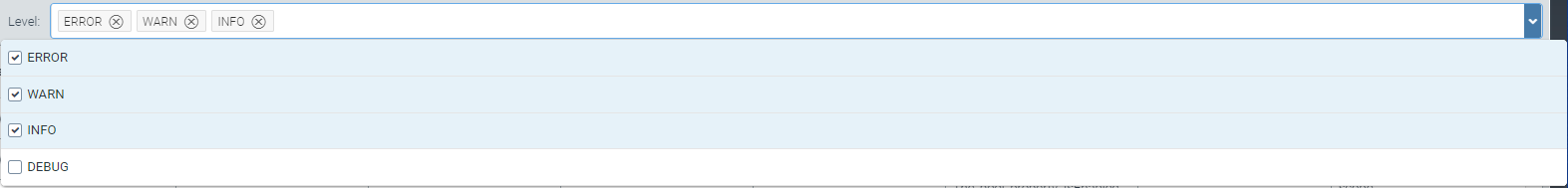

Log level

Determines which types of system events are displayed.

For more information, see Overview of log levels.

2

List of system events

Displays all system events. What type of system event is displayed in the list will depend on your selection of log level types in the Level field.

The most recent system events are displayed at the top of the table.

To update the table, click Refresh.

Overview of the columns in the "System Events" screen


Column

Description

Time stamp

Shows the time and date when a system event occurred.

Level

Shows the log level of a system event; for more information, see Overview of log levels.

Service

Shows the service to which a system event refers.

Event ID

Shows the ID of a system event.

Tracking ID

Shows the tracking ID of a system event.

Tracking key

Shows the tracking key of a system event.

Message

Shows the short technical description of a system event.

To open the complete description of a system event, double-click on any column in the row of the respective system event.

User name

Shows the name of the user who caused a system event.

Object keys

Shows the object key for identifying errors.

Overview of log levels


Name

Description

ERROR

Error message: Errors lead to the termination of an action.

WARN

System Warning: Warnings do not lead to the termination of an action.

INFO

Standard event (e.g. document archiving)

DEBUG

Developer information
