xSuite System Measurement
xSuite System Measurement is used to evaluate xSuite processes that were completed within a defined period of time.
Overview of search fields for xSuite System Measurement
Search field | Description |
|---|---|
Object Type | Limits the search to the data of one or more xSuite object types, e.g. |
Date | Limits the search to data of a specified time period. |

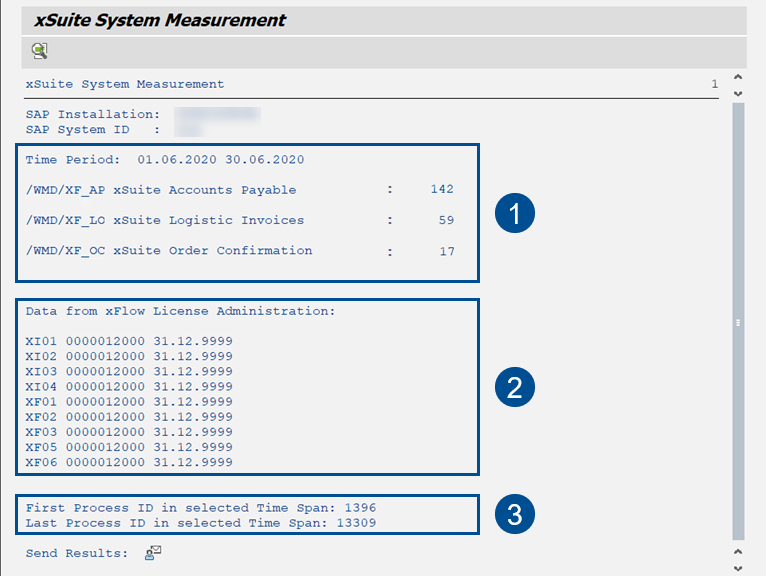

UI elements in xSuite System Measurement
 |
Element | Description |
|---|---|
1 | Shows the number of processed operations per object type in the selected time period. |
2 | Shows the licensed volume and the validity period for the respective license. For information on the xSuite License Management, see xSuite License Management. |
3 | Shows the first and the last xSuite process ID used by the system in the time period selected. |
