xSuite Archive Prism User Guide

Executing one or more tools

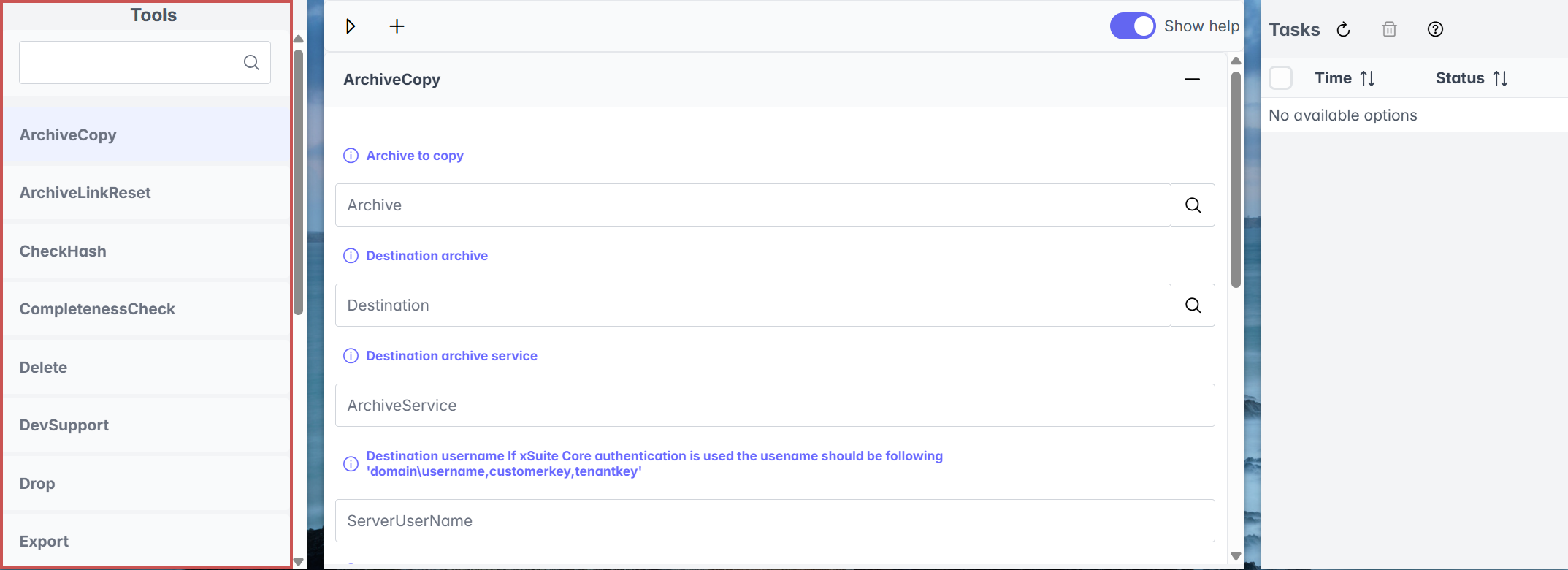

  1. Open the Tools area.

  2. In the Tools list, click on the tool you want to execute.


    ➣ The parameters of the selected tool are now displayed.

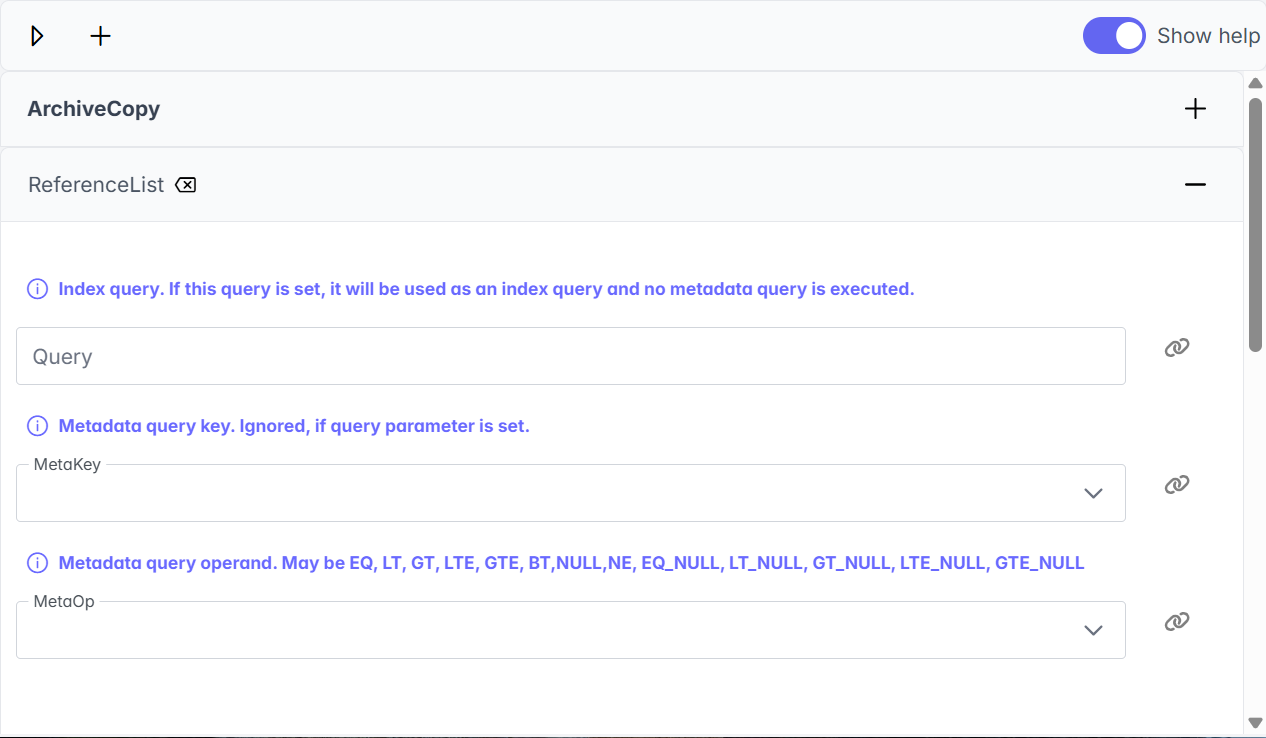

  3. To execute multiple tools, click on theprism_archive_hinzufugen.png button and select a tool.

    ➣ The parameters of this tool will appear below the parameters of the first tool selected.


    Notice

    Click on the prism_archive_werkzeug_entfernen.png button to remove the tool again.

  4. Enter values for the parameters.

  5. Click on the button prism_archive_fortsetzen_icon.png.

    ➤ The tool or tools have now been executed.

    Notice

    You can monitor execution in task control.
