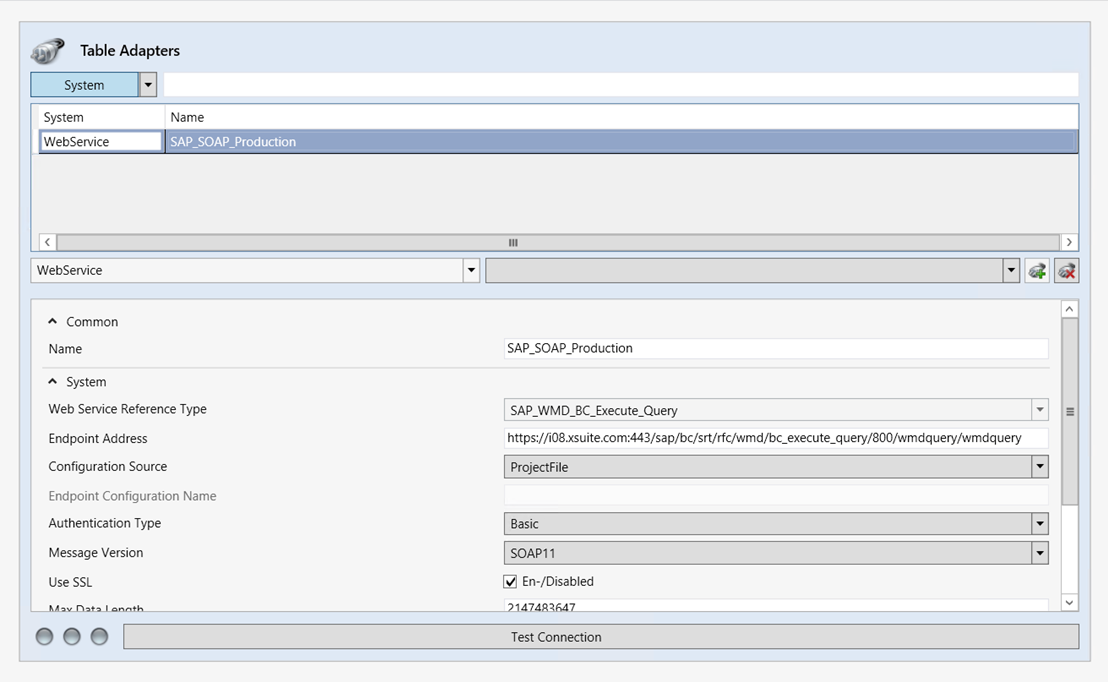

Web Service Adapter

xSuite Bus Prism Administration Guide

Element	Field	Description
Common	Name	Sets the name of the web-service adapter.
System	Web Service Reference Type	Defines the web service reference type. Always `SAP_WMD_BC_EXECUTE_QUERY`
	Endpoint Address	Defines the URL of the web service. The URL of the web service contains the client information.
	Configuration Source	Sets the source of the configuration. Possible values: `None`: None `ProjectFile`: Project file AppConfigFile: App configuration file
	Endpoint Configuration Name	Specifies the name of the app configuration file if the value `AppConfigFile` is selected in the Configuration Source field.
	Authentication Type	Defines the authentication type. Possible values: `Basic` and `None`
	Message Version	Defines the message type. Possible values: `SOAP11` and `SOAP12`
	Use SSL	Enables or disables protected HTTPS communication.
	Max Data Length	Defines the maximum packet size for message transmission.
	Timeout Seconds	Sets the time span after which a timeout is generated.
User	User Name	Defines the user name (in the case of authentication).
	Password	Sets the user password (in the case of authentication).
	Test Connection	Checks the connection to the web service URL.
