Creating an xSuite Bus destination
Within the Cloud Foundry subaccount, click Connectivity → Destinations.
Click the New Destination button.

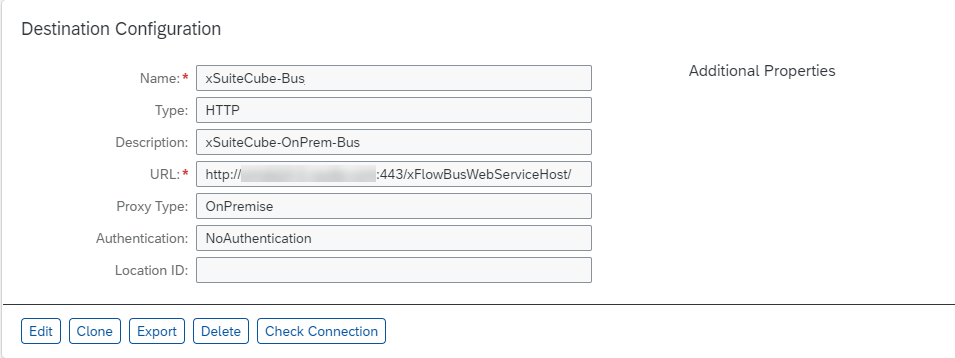

Create a destination as shown in the screenshot below:
Field
Description
Name
By default, the name of the xSuite Bus destination used by xSuite Apps is xSuiteCube-Bus.
Type
The default type is HTTP, although, depending on the URL, HTTP can also map to HTTPS.
Description
The description of the xSuite Bus destination is
xSuiteCube-OnPrem-Bus.URL
The URL depends on the xSuite Bus system and corresponds to the URL by which the xSuite Bus services can be reached.
When using the PNG Viewer, use the following URL scheme:
http://<domain>:<port>When using the DocViewer, use the following URL scheme:
http://<domain>:<port>/xFlowBusWebServiceHostProxyType
The default ProxyType used is the value
OnPremisein accordance with the instructions in the Cloud Connector Guide.If the Cloud Connector is configured differently, select the appropriate value.
Authentication
Select the authentication method that was also set up for the Cloud Connector.
Click Save.
➤ The xSuite Bus destination has now been created.
Click the Check Connection button to test the connection.
➤ If a connection has been established, the message Connection to {name of destination} successful will appear.
➤ If it was not possible to establish connection, an error message will appear indicating the cause.
